Model HR006

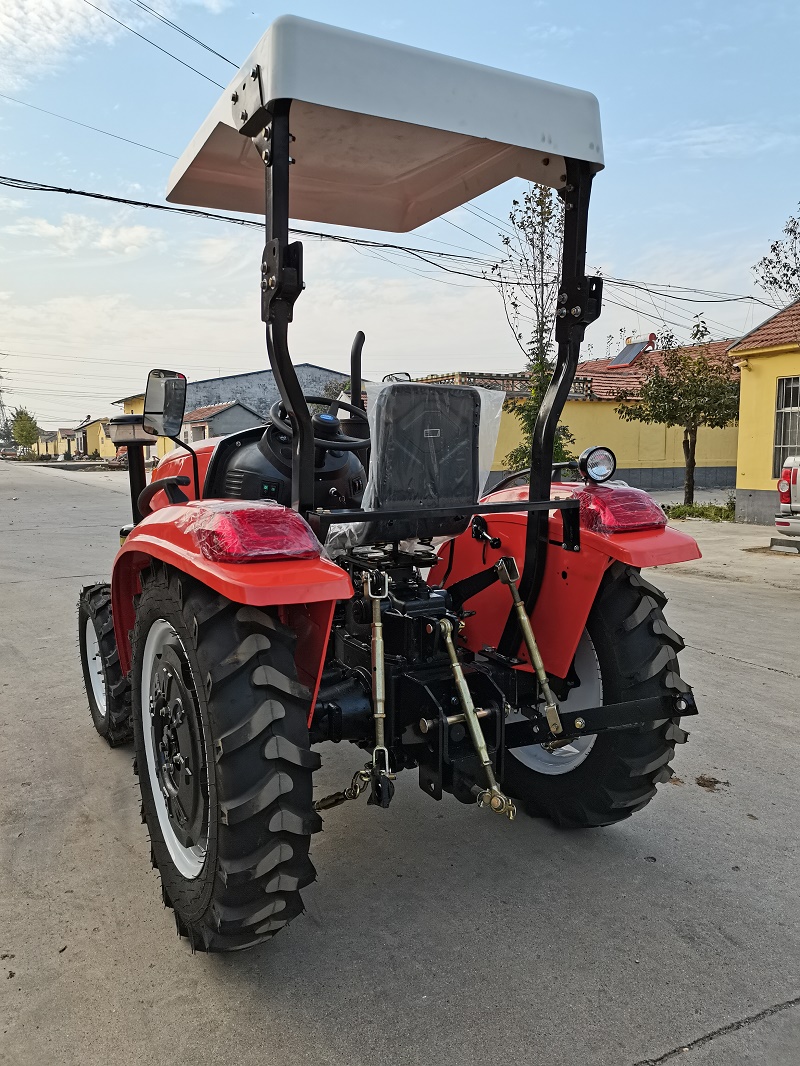

4X2WD and 4X4WD MINI tractor
It's a new small tractors and it has the advantages of walking tractor and wheel tractor,but it is price is lower than wheel tractor and it is easy to operate for farmers to get a higher efficent and save farms Labor intensity。
The power can be 10hp,12hp,13hp,15hp ,18hp.20HP,22HP
It is an industry-leading level.
| Type | 4*2 OR 4x4 Wheel Type |
| Dimension(L*W*H) | 3300×1500×1350 MM |
| Wheel Base | 1680 MM |
| Track Base (Front/Rear Tire) | 900, 1150/900-1200 MM |
| Min.Ground Clearance | 280 MM |
| Min. Mass | 1300 KG |
| Front/Rear Axle Weight | 585/715 KG |
| Gear Style | 8 F+2R |
| Speed | F1:1.93; F2:2.94; F3:4.61; F4:6.36; F5:8.92; F6:13.58; F7: 21.31; F8: 29.38; R1: 1.93; R2: 8.92 (KM/H) |
| Connection Style | Gear Connection Between Engine and Gearbox |
| Starter Style | Electric starter |
| PTO Power | 25.1 KW |
| Max. Traction | 7 KN |
| PTO Size | 6 teeth, ￠35 |
| PTO Speed | 720 RPM |
| Clutch | Dry, Single Type |
| Suspension Type | 3 point linkage |
| Front Tire | 5.00-15 |
| Back Tire | 9.50-16 |
| Steering | Hydraulic Steering |
| Brake | Mechnical, Shoe style |
| Driver Seat | Mechanical suspension Style with Safety Belt |
| Mirriors | 2 pcs |
| Differenticla Lock | Yes |
| Hydraulic Output | Normal One Way Valve |
| Battery | 12V, 80AH |
| Battery Brand | Camel |
| Ballast (Front/Back) | 60KG, 8PCS/80KG, 8 PCS |
| Brand | Laidong |
| Model | 3100 |
| Type | 3Cylinders, Water-cooling, In Line, 4 Stroke |
| Max Torque RPM (Nm): | 157+/-5%1200 RPM (+/-100) |
| Rated Speed | 2000 RPM |
| Power | 25.725KW/35HP |
| Air intake type | Normal Aspirated |
| Roll Bar | with |
| Sun-Shade | with |
| Cabin | can choice |
| Air Brake | with |
| Double Way Valve | can choice |
| Dual Clutch | can choice |
| Swing Draw Bar | can choice |
| Shuttle gearshift | can choice |
| Paddy Tire | can choice |
