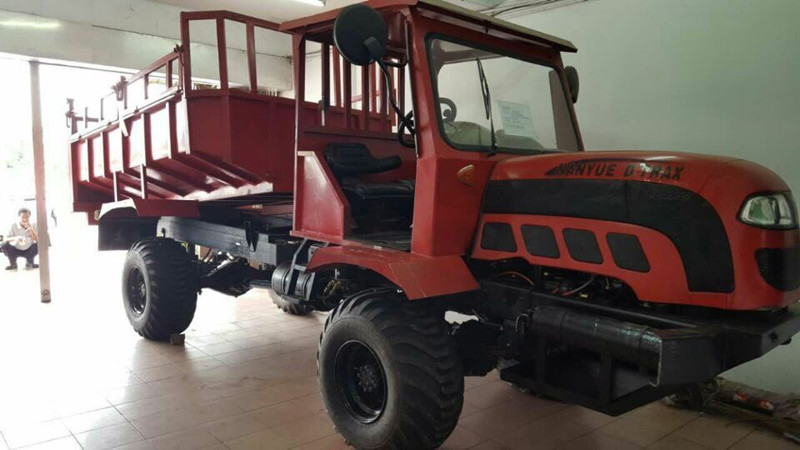

HR854-2 Trailer tractor

HR854-2 Trailer tractor

The 4WD palm tractors are main for palm oil platation ,they  are  specially design for the palm oil plant , main for kinds of transport ,  especially in the paddy mud land.

1.4wd Oil palm fruit tractor
2.suit for mud land and mountain land transport
3.suit for wood ,banboo ,oil palm ,ore transport

Our  the 85HP- 4WD  OILD PALM TRACTOR are main for kinds of transport  ,  especially in the mud land for the oil palm,wood ,banboo, ore and so on.


The 4x4wd let the tractor suit for kinds of transport work.The power can from 18-85hp .



ModelHR854(87HP) 4*4   4 Cylinder
Passager2
Total Mass3200KG
Payload5T

           Tractor Dimensions
Overall Length5900mm
Overall Width2000mm
Overall Height2200mm

           Bucket Dimensions
Length3000mm
Width2000mm
Height600mm
Wheelbase3000mm
Tread2000mm
AxleType1050
EngineModel4100QB-2
TypeDirect   Injection
Cylinder(Bore*Stroke)110mm/117mm
Displacement3612   CC
Horse Power87hp/3200   r/min
Starter SystemElectric   /24 v
FuelDiesel   Fuel
Fuel Tank capacity70   L
Steering SystemTypeFully   hydraulic articulated steering
ElectricalBattery TypeLT120   * 2
Battery   Capacity24   v
Working Lamp24   v
Performance & Operating RangeMaximum Speed60   km/h
Minimum Turning Radius4500   mm
Maximum Gradability30°
Minimum Ground Clearance200mm
Maximum Braking Distance6000mm(60km/h,No   Load,Flat Surface))
TransmissionGear Box 145 High & Low                  8 Forward +2 Reverse with High/Low Gear
Transfer Case330
BrakeTypeAir   Brake
Hand BrakeMachanical   Actuated
TyreFront400/60-15.5
Rear400/60-15.5
Hydraulic SystemPump TypeGear   Pump
Max Discharge(qt/min)16   mpa
ClutchTypeOil   and Gas Booster
UnloadingTypeHydraulic   gear pump dump bucket, the maximum angle of 40 degrees
