Model 65HP

Model 65HP

Model 650 AND 654


Product features:

Beautiful appearance, comfortable operation, optional three cylinder, four cylinder engine, to meet your different needs;

The combination instrument and the automobile electric appliance constitute the switch, the control staff can understand the machine working state at any time, and provide the guarantee for the scientific use of the machine;

Meshing gear shift, gear brake mechanism to ensure that the product is durable.

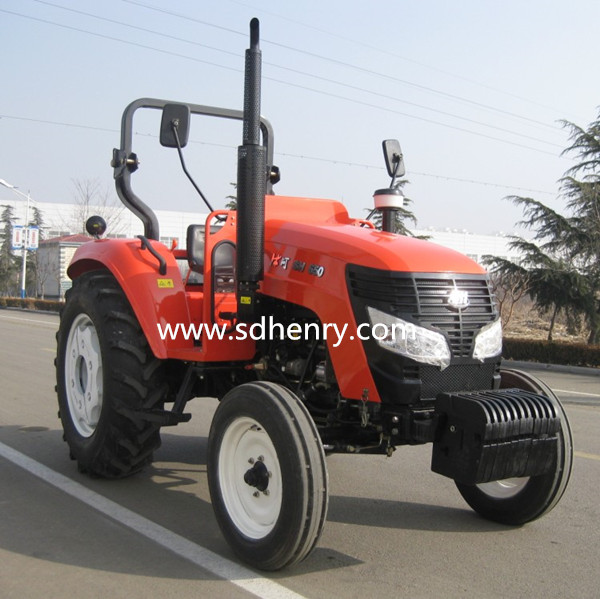

Model photo:



Specification:

MODEL

650/654


Engine Power kw/hp

47.8/65


Engine Type (cyl, T/NA)

4 ,NA


Rated Speed (rpm)

2200


Engine Torque (Nm @ engine rpm)

270~275;≤1650


Specific Fuel Consumption (L/h)

≤13.8


Emission Regulation availability (Euro I,II,II)

stage


Cooling type

WC


Engine manufacturer

YTO


Engine Displacement(L)

4.4


Air filter type

Oil Bath


Fuel tank capacity (litres)

78


Exhaust pipe (Vertical/Horizontal)

Vertical


Cyclone pre-filte (YES/NO)

NO


Alternator (V/w)

14v/350


Engine starte (kw)

3.8


TRANSMISSION


Type of clutch

Single, Dry


Total gears

8F+ 2R


Synchronized Gearbox (YES/NO)

NO


Min-Max speed (km/h)

3.04-34.71F/3.44-14.76R



Differential lock (limited slip/100% lock)

100% lock


4WD engagement type

Mechanical


Max Drawbar Pull 2WD/4WD

19.5/21


Pto speeds PT(rpm)

760/2200


PTO speed @ engine speed

540/760,2400


PTO engagement

8XΦ38/6XΦ35/21XΦ35


PTO independent clutch (YES/NO)

NO


PTO power (kw/hp)

40.7/55.3


Outlets pump type

gear pump


Max pressure (bar)



Max pump delyvery @ engine rpm

16/2000rpm
