Model 26HP

Model 26HP

Model 260 and 264


Product features:

Beautiful appearance, comfortable operation, optional three cylinder, four cylinder engine, to meet your different needs;

The combination instrument and the automobile electric appliance constitute the switch, the control staff can understand the machine working state at any time, and provide the guarantee for the scientific use of the machine;

Meshing gear shift, gear brake mechanism to ensure that the product is durable.

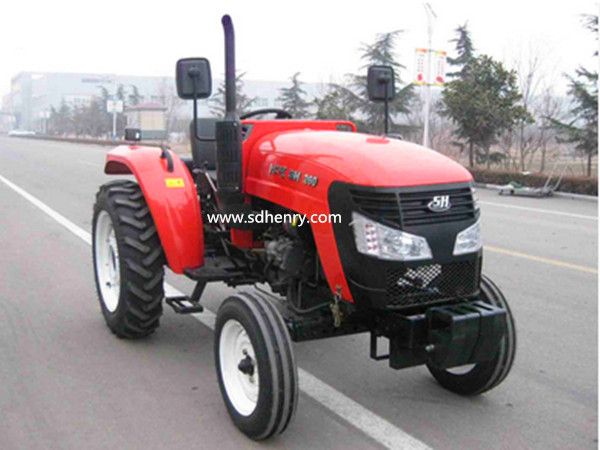

Model photo:




Specification:

Model

SH260/SH264

Engine

Engine Power KW/HP

19,11/26

Engine Type (Cyl, T/NA)

2,Turbo charger /Natural Aspirated

Rated Speed (rpm)

2300

Engine Torque (Nm @ engine rpm)

≥91.3/1725

Specific Fuel Consumption (L/h)

≤5.642

Emission Regulation availability (Euro I,II,II)

stage

Cooling type

WC

Engine Displacement(L)

1.65

Air filter type

Oil Bath

Fuel tank capacity (litres)

18

Exhaust pipe (Vertical/Horizontal)

Vertical

Engine starter (kw)

3kW

Alternator (V/w)

14V,350W

TRANSMISSION

Type of clutch

Single, Dry

Total gears

8F+ 2R

Synchronized Gearbox (YES/NO)

NO

Min-Max speed

2-31 F / 2,6-13 R

Differential lock (limited slip/100% lock)

100% lock

Max Drawbar Pull 2WD/4WD

5.06/5.20

Type of rear final drive (PLanetary, cascade),

External meshed gears

PTO

Pto speeds PT(rpm)

720

PTO speed @ engine speed

748/2300

PTO engagement

6XΦ35

PTO independent clutch (YES/NO)

NO

PTO shaft splines

6

HYDRAULIC SYSTEM


Outlets pump type

gear pump

Max pressure


Max pump delyvery @ engine rpm(ml/r),(rpm)

10/ 2000rpm

Outlets valves function (Kick-out, Detent, Float)

Detent



TECHNICAL DATA

Overall size 2WD (LxWxH) / mm

2900x1310x1930

Overall size 4WD (LxWxH) / mm

2930x1310x1975

Max height with CABIN / mm

2270

Rear Wheel track 2WD / mm

960-1060-1120-1220

Front Wheel track 2WD / mm

1080-1180-1280

Front Wheel track 4WD / mm

1080

Rear Wheel track 4WD / mm

960-1060-1120-1220
